PRODUCT DETAILS
BaoFeng BF-UV5R Tri-Band Walkie Talkie
Upgrade your communication game with the BaoFeng BF-UV5R Tri-Band Walkie Talkie. Whether you are an amateur radio enthusiast or need a reliable two-way portable radio, this device has you covered.
Main Features:
- Tri-band operation for versatile communication
- Dual standby with tri-display for increased efficiency
- 128 groups channels storage for easy access
- Emergency Alarm and Time-out Timer for safety
- VOX, FM radio, and Voice companding for convenience
- Wide/Narrow Band selection for signal clarity
- Battery voltage display and power-saving function for longevity
- PC software programmable for advanced customization
Specifications:
- Output Power: ≤ 5W
- Battery Type: Li-ion 1800mAh
- Working Temperature: -20~+50°C
- Weight: 255g
- Dimension: 58×32×110mm (excluding antenna)
Package Includes:
- 1 x Portable radio

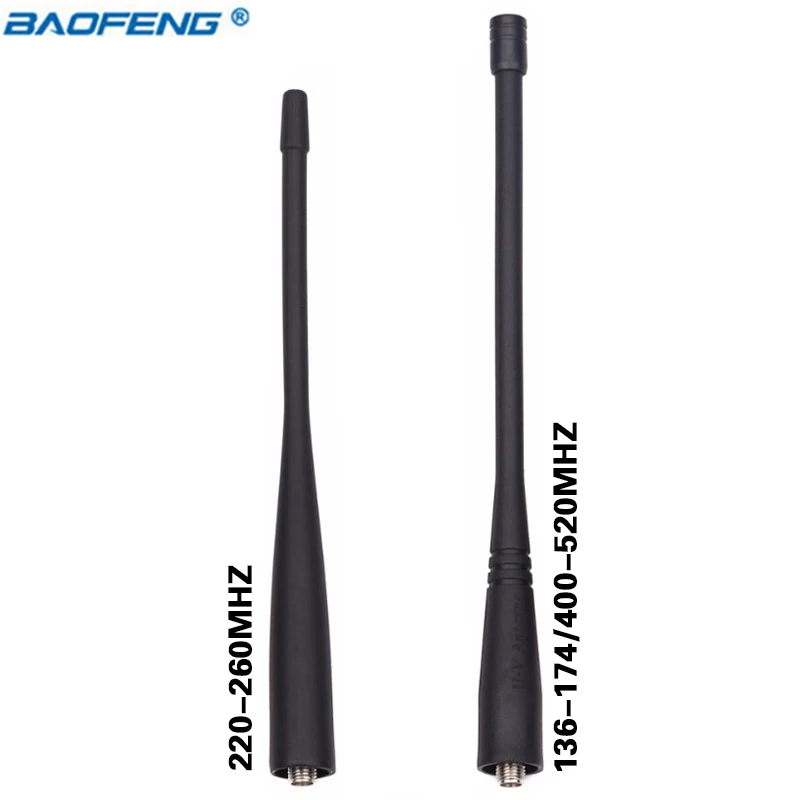

- 2 x Antenna
- 1 x Li-ion battery

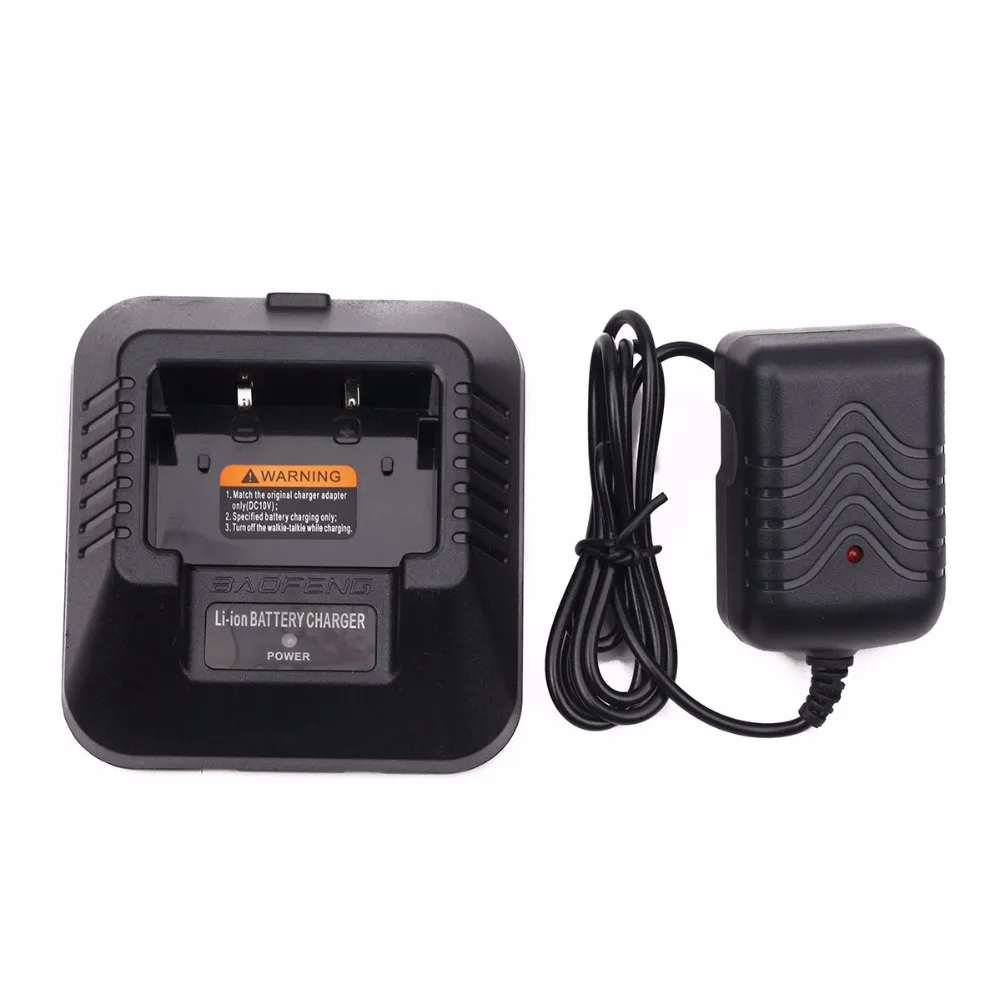

- 1 x Desktop Charger (100V ~ 240V)
- 1 x Belt clip and sling
- 1 x Earpiece (as a gift)
- 1 x User's manual
Enhance your communication experience with the BaoFeng BF-UV5R. Stay connected in the great outdoors, during emergencies, or in your amateur radio pursuits with this versatile and durable walkie talkie.
Description:
Hot Spots | ||
Tri-band / Tri-display | dual standby | |
128 groups channels storage | Shortcut menu operation mode | |
VFO & Memory channels scan | Emergency Alarm | |
Time-out Timer (TOT) | 0~9 grades VOX selectable | |
PTT & ANI ID | FM radio and 25 stations storage | |
Voice companding | 50 CTCSS/104 DCS | |
High/Low TX power selectable | Busy channel lock-out(BCLO) | |
DTMF function | OFF SET function | |
Wide/Narrow Band(25kHz/12.5kHz) | Yes | |
VOX function | Yes | |
Busy lockout function | Yes | |
Scanning function | Yes | |
Monitor function | Yes | |
Time-out Timer (TOT) function | Yes | |
LCD display | Yes | |
Dual display | Yes | |
Battery voltage display function | Yes | |
Channel name display and editing functions | Yes | |
Signal strength indicator | Yes | |
Keypad lock function | Yes | |
Built-in Led torch | Yes | |
FM radio | Yes | |
Wire clone function | Yes | |
Emergency alarm function | Yes | |
Low battery alarm | Yes | |
Power saving function | Yes | |
High/Low TX power selectable | Yes | 4W/1W |
ROGER SET | Yes | |
Chinese and English voice prompt | Yes | |
PC software programmable | Yes | |
Basic Descriptions | ||
Rated Voltage | 7.4V DC±10% | |
Output power | ≤ 5W | |
Battery type | Li-ion battery | |
Battery capacity | 1800mAh | |
Working temperature | -20~+50°C | |
Antenna Impedance | 50Ω | |
Weight | 255g | |
Dimension(L×W×H) | 58×32×110mm(Not Antenna) | |
Specification | ||
Frequency stability | ±2.5ppm | |
Carier wave tolerance | 5ppm | |
Modulation | 16kΦF3E / 11kΦF3E | |
Max frequency deviation | < 5kHz(Wide) | |
Modulation character | 6 dB per fold frequency patch | |
Emission current | < 1.6A(5W) | |
CTCSS / DCS | 0.5±0.1kHz(Wide) | |
Sensitivity | < 0.16μV(12dB SINAD) | |
Silent sensitivity | < 0.2μV | |
Intermediation Distortion | <10% | |
Inter modulation | 8-12mv | |
Adjacent channel selectivity( wide/narrow) | <-65dB(Wide) <-60dB(Narrow) | |
Package Include:
· 1 x Portable radio
· 2 x Antenna
· 1 x Li-ion battery
· 1 x Desktop Charger ( 100V ~ 240V )
· 1 x Belt clip
· 1 x The sling
· 1 x Earpiece (as the gift)
· 1 x User's manual
